Cast Iron Track Wheels (CI-TRK)
Cast Iron Track Wheels (CI-TRK)

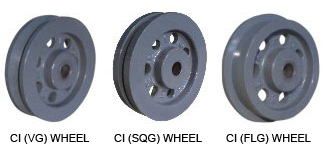

Cast iron wheels with either V-groove (VG), Square groove (SQG), or a Flange (FLG) are available depending upon the track over which the castors has to move. Since the wheels roll over steel track, the pushing or pulling force required is much less, reduces labour fatigue. Floor surface also does not get damage at any time.
- Hardness of Polyurethane : ( 175 ± 10 ) BHN
- Grade of Casting : FG200 as per IS-210
- Maximum Working Temperature : 2500C
|
TECHNICAL DETAILS – CAST IRON TRACK WHEELS |
|||||||||
|
Size of Wheel Dia x Width |
Width of boss of Wheel B mm |
Size of bore for wheel with |
Ball bearing used (Number) |
Load Carrying Capacity Kg. |
|||||
|
PLB d mm |
NYL d mm |
SIB d mm |
NRB d mm |
BB d mm |
|||||
|
50 x 25 |
30 |
--- |
--- |
12.0 |
--- |
--- |
--- |
100 |
|
|
75 x 25 |
30 |
--- |
--- |
12.0 |
--- |
--- |
--- |
150 |
|
|
77 x 32 |
45 |
--- |
--- |
15.9 |
19.0 |
20.00 |
6004 |
200 |
|
|
77 x 40 |
45 |
--- |
--- |
15.9 |
--- |
20.00 |
6004 |
250 |
|
|
100 x 32 |
45 |
--- |
--- |
15.9 |
19.0 |
20.00 |
6004 |
300 |
|
|
100 x 40 |
45 |
--- |
--- |
19.0 |
--- |
20.00 |
6004 |
350 |
|
|
100 x 50 |
60 |
--- |
--- |
25.4 |
19.0/25.4 |
25.00 |
6205 |
400 |
|
|
125 x 50 |
60 |
--- |
--- |
25.4 |
19.0/25.4 |
25.00 |
6205 |
500 |
|
|
150 x 40 |
50 |
--- |
--- |
19.0 |
--- |
20.00 |
6004 |
600 |
|
|
150 x 50 |
60 |
--- |
--- |
25.4 |
19.0/25.4 |
25.00 |
6205 |
700 |
|
|
150 x 75 |
90 |
--- |
--- |
--- |
25.4 |
25.00 |
6205 |
1000 |
|
|
200 x 40 |
50 |
--- |
--- |
19.0 |
--- |
20.00 |
6004 |
800 |
|
|
200 x 50 |
60 |
--- |
--- |
25.4 |
19.0/25.4 |
25.00 |
6205 |
900 |
|
|
200 x 75 |
90 |
--- |
--- |
--- |
25.4 |
25.00 |
6205 |
1200 |
|
|
250 x 50 |
60 |
--- |
--- |
25.4 |
25.4 |
25.00 |
6205 |
1050 |
|
|
300 x 50 |
60 |
--- |
--- |
25.4 |
25.4 |
25.00 |
6205 |
1400 |
|
|
SPECIAL FLANGE WHEELS |
|||||||||
|
230 x 70 |
78 |
--- |
--- |
--- |
--- |
25.00 |
6205 |
1200 |
|
|
425 x 87 |
100 |
--- |
--- |
--- |
--- |
25.00 |
6205 |
3000 |
|
- Notes : Cast Iron & Cast Iron Track wheels are provided with metal cage NRB. Plastic cage NRB not available in these wheels.
