Heavy Duty Forged Steel Castors (hd series)



Heavy Duty Castors Heavy Duty Castors

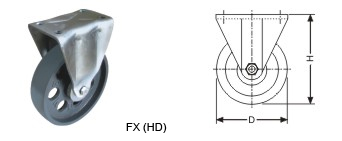

Heavy Duty castors are recommended where floor conditions are not good & MD castors needs frequent replacement. These castors can withstand occasional shock loads & higher speeds. Heavy Duty swivel castors are of two types. i.e. HD-F & HD-C. However, important dimensions such as mounting holes, overall height etc. are exactly same for both types of castors. Therefore, matching fixed castor [ FX(HD) ] is same for both types of swivel castor. SRT, BRT, PU-PP, PU-CI, PP, NYL, UHMW, FBR, CI wheels can be used in heavy duty castors.

Heavy Duty Castors


Technical details for Heavy Duty Forged Steel Castors (HD Series)

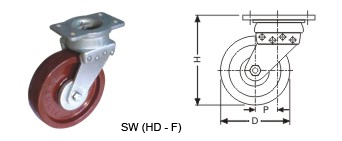

FIXED  &  SWIVEL  CASTORS  ( HD-F  SERIES )

Size of Wheel
Dia x Width

Overall Height

Offset in case of SW

Mounting Plate
Number
FX    SW

Load Carrying Capacity

SRT Type

BRT Type

PU-PP Type

PU-CI Type

PP
Type

NYL Type

UHMW Type

FBR Type

CI
Type

100 x 50

155

40

10

10

---

150

---

250

175

250

300

225

400

125 x 50

180

45

10

10

---

175

---

300

225

---

400

---

500

150 x 50

205

50

10

10

125

200

160

350

300

350

550

400

700

150 x 75

205

50

11

10

---

300

---

---

---

---

750

---

1050

200 x 50

255

60

10

10

150

250

200

500

---

---

750

---

900

200 x 75

255

60

11

10

225

375

---

---

---

---

1000

---

1350

250 x 50

305

70

10

10

175

300

---

---

---

---

900

---

1050

250 x 75

305

70

11

10

---

450

---

---

---

---

1200

---

1575

300 x 50

355

80

10

10

200

400

---

---

---

---

1000

---

1400

300 x 75

355

80

11

10

300

600

---

---

---

---

1600

---

1800

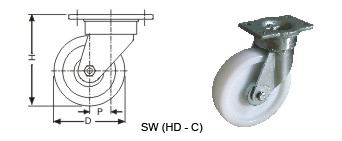

SWIVEL  CASTORS  ( HD-C  SERIES )

Size of Wheel
Dia x Width

Overall Height

Offset in case of SW

Mounting Plate
Number

Load Carrying Capacity

SRT Type

BRT Type

PU-PP Type

PU-CI Type

PP
Type

NYL Type

UHMW Type

FBR Type

CI
Type

100 x 50

155

40

10

---

150

---

250

175

175

300

225

400

125 x 50

180

45

10

---

175

---

300

225

---

400

---

500

150 x 50

205

50

10

125

200

160

350

300

350

550

400

700

200 x 50

255

60

10

150

250

200

500

---

---

750

---

900

250 x 50

305

70

10

175

300

---

---

---

---

900

---

1050

300 x 50

355

80

10

200

400

---

---

---

---

1000

---

1200
